Accessories

Rosemount 2240S Multi-input Temperature Transmitter

The ultra-stable 2240S is approved for demanding custody transfer applications, which require very accurate level and temperature measurements for net standard volume calculations. Used with a 565/ 566 or a Cool Down and Leak Detection sensor.

Rosemount 765 Multiple Spot Temperature and Water Level Sensor

The water level sensor is used to determine the water content in a tank. At the bottom of an oil storage tank there is water and by measuring the water level it is possible to calculate the correct product volume in the tank.

Rosemount 565/566 Multiple Spot or Average Temperature Sensor

Up to 16 spot elements, placed at different heights, provide a tank temperature profile and average temperature. The sensor can be
integrated with a water level sensor. The 566 cryogenic version is
used for LNG applications.

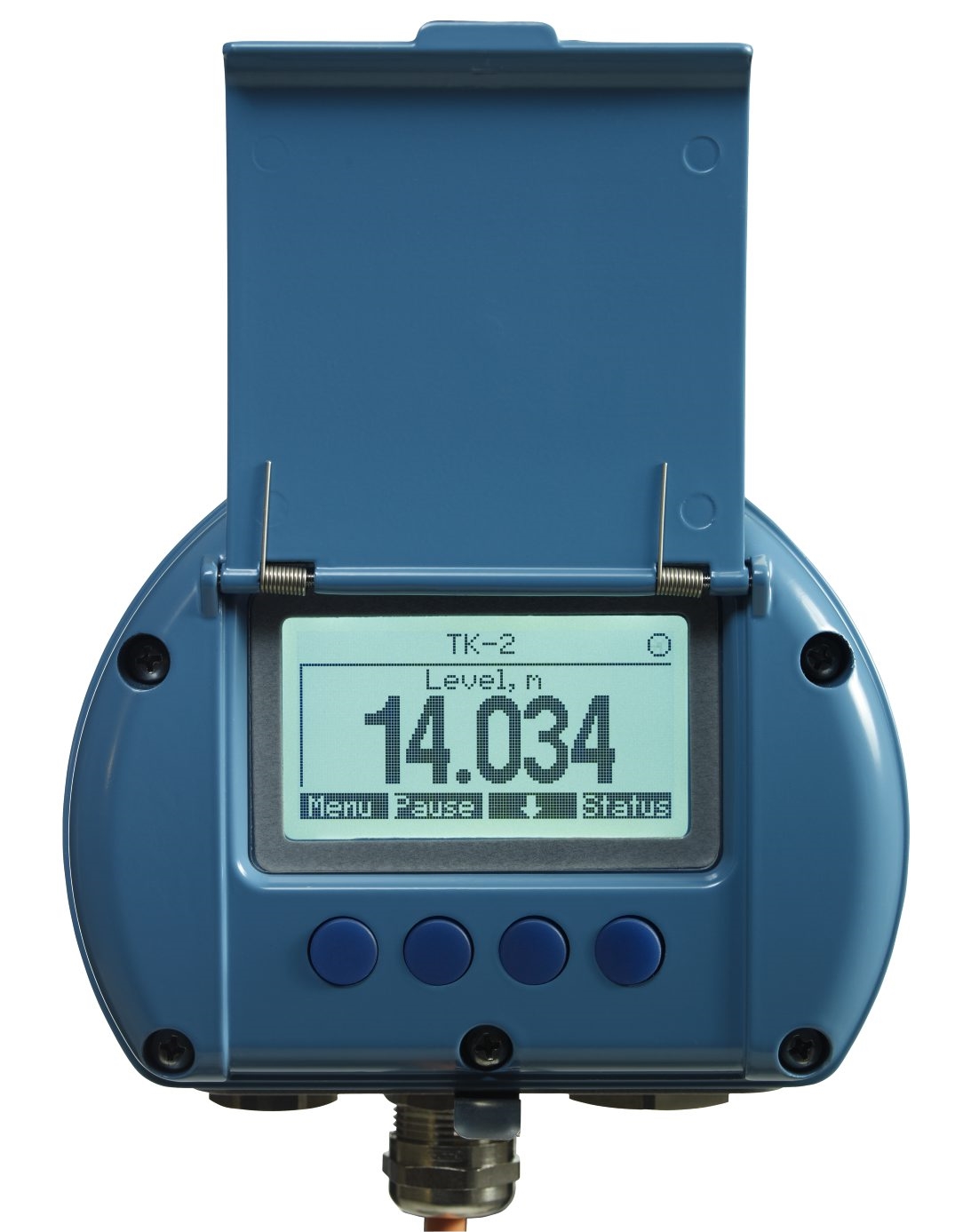

Rosemount 2230 Graphical Field Display

Rosemount 2230 presents inventory tank gauging data such as level, temperature, and pressure. This backlit user-friendly display is designed for tough environments, and can be installed in hazardous areas, on the tank roof or at the foot of the tank.

3051S Pressure Transmitter

Rosemount 3051S is the standard pressure transmitter supplied with the Raptor system for in-liquid mounting. It has an industry leading performance with 0.025% accuracy.

FCU 2160 – Field Communication Unit

Rosemount 2160 is a data concentrator that continuously polls data from field devices via the 2410 hub and stores the values in a buffer memory. It can service requests from any hosts and/or DCS systems using the Modbus protocol.
